SDN Appliances

Software Definable Network Appliances™ (SDN-A™) are portable, robust, software programmable communications solutions for secure voice, video and data feeds over a variety commercial network technologies including Ethernet, Wi-Fi, Cellular, MANET, SATCOM and more.

SDNA-Lite-K

Software Definable Network- Appliance™ with Haivision Kraken

Software Definable Network–Appliance™ (SDN-ATM) LITE-K is now available with Haivision’s Kraken video transcoder functionality for use cases where size, weight, power, and Mil-Standard 810 level of ruggedization is critical. Leveraging SDN-A technology, Kraken provides the highest picture quality from available bandwidth for low latency backhaul of situational awareness and C4ISR video.

Haivision Kraken™

Known for high-density tactical live HD video encoding and transcoding, Haivision’s Kraken can shape video streams for more robust backhaul via data links including satellite (SATCOM), microwave, and the internet, to downstream exploitation systems, such as enterprise distribution networks and mobile devices–where compliance with legacy standards is essential.

Aggregated Situational Awareness

Designed to work in almost any ISR video workflow and supporting HEVC/H.265, H.264, and MPEG-2, Kraken can ingest video from numerous motion imagery sources and formats simultaneously regardless of platform while maintaining synchronized metadata for Command & Control (C2) and Common Operating Picture (COP) systems. Helping with beyond line-of-sight applications with constrained bandwidth, Kraken can encode/transcode multiple video streams with HEVC compression for significant reductions in bitrate while maintaining image quality. with SDR/SDTR, MS Windows or Linux server, MS Windows, or Linux computer, etc.

SDNA-LITE-K

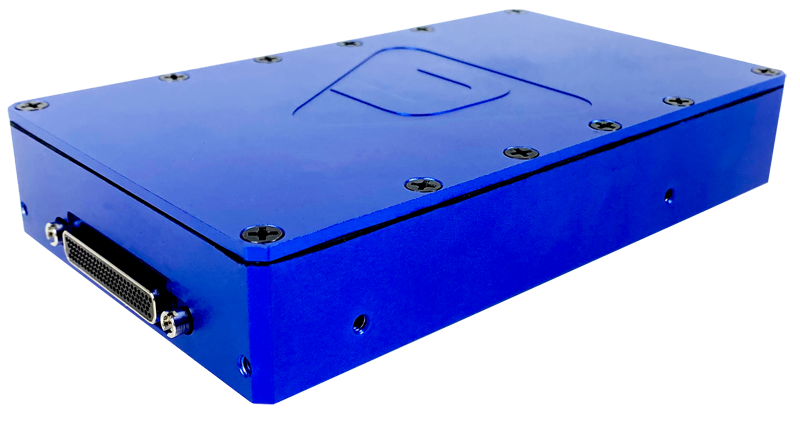

The SDNA-LITE-K is extremely small, rugged, and low power. It features a single high-density connector that contains all of its power and I/O, allowing for simple installation or removal from use. Custom wire harnesses are available to meet use case requirements such as tailor-made length, interfaces, input/output, and gender. The device also offers multiple mounting points and thermal solution mounting points to support various worn and mounted applications.

The SDNA-LITE-K can perform multiple software-based networking and computing roles simultaneously in a single device. Potential functions of an SDN-A include software-defined Router, VPN, Firewall, IDS/IPS, VoIP PBX, video transcoder, SIGINT receiver with SDR/SDTR, MS Windows or Linux server, MS Windows, or Linux computer, etc.

Bandwidth Optimization

Kraken allows you to deliver substantially increased full HD video quality over satellite and other constrained networks. Optimized for 1080p/720p applications, Kraken receives high bitrate H.264 streams, which it then transcodes to HEVC for transport (typically in the 1 Mbps to 3 Mbps bandwidth range) and reconverts from HEVC/H.265 to H.264 for onward distribution through less constrained exploitation ecosystems.

With Kraken, HEVC transcoding reduces bandwidth by up to 50% compared to H.264 while maintaining high picture quality. It also reduces data service costs where IP data transport is a “pay for kilobytes transported” service.

Compliant Metadata

In the world of ISR, systems are designed to collect, process, and disseminate information. Many FMV applications bundle additional information with video streams in the form of metadata, typically in STANAG and MISB compliant Key-Length-Value (KLV) format.

Kraken is specifically optimized to disseminate information in a format that adheres to defense standards in downstream networks, exploitation systems, and viewers, with the lowest possible delay, while preserving and enhancing metadata with frame-accurate synchronization.

Other SDN Appliances Products:

SDNA-XCB-HRW

Combines the capabilities of an IP networking router, a 20 port PoE Ethernet switch with 10G interfaces, and an enterprise-class virtual machine server into a single Half Rack Width (HRW) appliance.

Learn More

F45

The F45 seamlessly combines our Software Definable Network Appliance™ (SDNA™) technology with the industry leading Radio Over IP (RoIP) Gateway technology from JPS Interoperability.

Learn More

SDNA-HRW

The Half Rack Width (HRW) Software Definable Network-Appliance (SDN-A) delivers high performance while significantly reduces the size, weight, power and cost of tactical communications.

Learn More
SDNA-HRW

Software Definable Network Appliance (SDNA) Half Rack Width (HRW)

The SDNA-HRW is our highest performing SDN-A, featuring Intel® processors with Intel QuickAssist® Technology (QAT). Intel QAT significantly increases cryptographic performance by adding dedicated cryptographic acceleration hardware on the Intel Xeon CPU, supporting 20 Gbps and 50 Gbps AES encryption performance levels. By using the dedicated cryptographic acceleration logic, the balance of the Intel Xeon processor can be leveraged for software based Virtualized Networking Functions (VNF) or application servers.
