SDN Appliances

Software Definable Network Appliances™ (SDN-A™) are portable, robust, software programmable communications solutions for secure voice, video and data feeds over a variety commercial network technologies including Ethernet, Wi-Fi, Cellular, MANET, SATCOM and more.

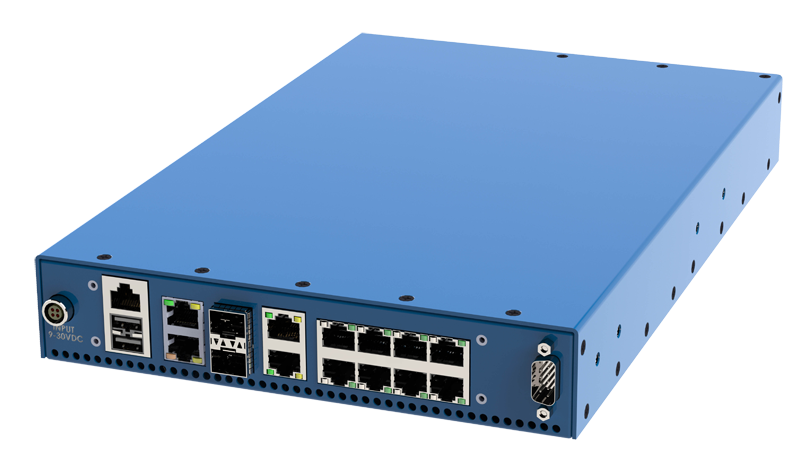

SDNA-HRW-X2

Software Definable Network Appliance (SDNA) Half Rack Width (HRW)

The SDNA-HRW-X2 is our highest performing SDN-A, featuring Intel® Xeon D2100 Series processors with Intel QuickAssist® Technology (QAT). Intel QAT significantly increases cryptographic performance by adding dedicated cryptographic acceleration hardware on the Intel Xeon CPU, supporting 20 Gbps and 50 Gbps AES encryption performance levels. By using the dedicated cryptographic acceleration logic, the balance of the Intel Xeon processor can be leveraged for software based Virtualized Networking Functions (VNF) or application servers.

The SDNA-HRW-X2 combines the capabilities of an “all WAN technology consuming” IP networking router, a 12-port switch, and an enterprise-class virtual machine (VM) server into a single HRW appliance. It offers a multitude of commercial networking technologies that include Ethernet (copper and fiber), 802.11ax Wi-Fi 6, 3G/4G/5G upgradable Cellular, and additional Ethernet based commercial WAN technologies support. Because the HRW SDN-A X2100 is software programmable, it yields a flexible, scalable, interoperable solution that is future proof. It has enough processing power to support today’s software- based IP networking technologies and performance levels to support impending 5G use cases and beyond.

SDN-A Technology

The SDNA-HRW-X2 leverages our Software Definable Network-Appliance technology, which allows you
to create a networking appliance based on your preferred vendor’s software-based VNFs. SDN-As support several different VM hypervisors, along with networking function VMs from companies such as Cisco, Aruba, Juniper, Palo Alto, Fortinet, and IAS ROS. When used with IAS ROS hypervisor, users can benefit from the SDN-A’s cellular and Wi-Fi transport technologies.

Other SDN Appliances Products:

SDNA-XCB-HRW

Combines the capabilities of an IP networking router, a 20 port PoE Ethernet switch with 10G interfaces, and an enterprise-class virtual machine server into a single Half Rack Width (HRW) appliance.

Learn More

F45

The F45 seamlessly combines our Software Definable Network Appliance™ (SDNA™) technology with the industry leading Radio Over IP (RoIP) Gateway technology from JPS Interoperability.

Learn More

SDNA-HRW

The Half Rack Width (HRW) Software Definable Network-Appliance (SDN-A) delivers high performance while significantly reduces the size, weight, power and cost of tactical communications.

Learn More
SDNA-HRW

Software Definable Network Appliance (SDNA) Half Rack Width (HRW)

The SDNA-HRW is our highest performing SDN-A, featuring Intel® processors with Intel QuickAssist® Technology (QAT). Intel QAT significantly increases cryptographic performance by adding dedicated cryptographic acceleration hardware on the Intel Xeon CPU, supporting 20 Gbps and 50 Gbps AES encryption performance levels. By using the dedicated cryptographic acceleration logic, the balance of the Intel Xeon processor can be leveraged for software based Virtualized Networking Functions (VNF) or application servers.
